Xtra Flex Convoflow SS Hose

Convoluted flexible PTFE hose with vacuum wire and high tensile stainless steel braid, Medium wall.

Construction:

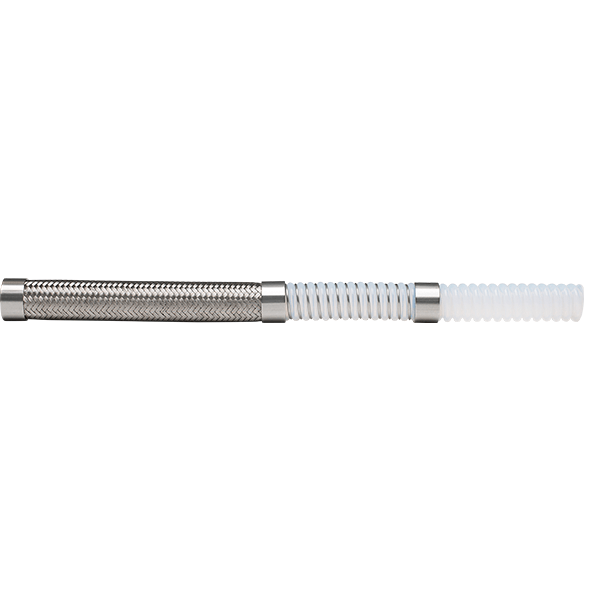

A helically convoluted PTFE inner tube, medium wall with external vacuum wire and SS304 high tensile stainless steel braid, which ensures high flexibility.
Convoflow should be specified for steam applications or when high vacuum hose applications are required. Generally excellent mechanical strength.
Recommended on all tafted flange assemblies.

Temperature Range: -70 deg.C to +260 deg. C

Fittings: With PTFE tail, Hydraulic tail and Industrial fittings with PTFE lining

Category: Hoses Tag: Xtra Flex

Size	Hose ID (D1)		PTFE Thickness	OD of Braid (D3)		Bend Radius	Working Pressure	Burst Pressure	Vacuum
Inch	Min.	Max.	D2	Min.	Max.	R (mm)	Bar 20 deg. C.
1/4"	5.5	6.9	0.75	9.9	11.5	25	35	170	744
3/8"	8.5	10.5	0.65	13.2	14.7	25	35	170	744
1/2"	11.6	13.6	0.75	12.9	14.4	25	60	300	947
5/8''	15.1	16.4	0.8	16.2	17.5	35	55	270	947
3/4"	19.5	20.5	1	28.6	31.4	55	60	290	947
1"	24.5	26.5	1	34.2	38.2	85	40	210	947
1 1/4"	31.5	32.5	1	41.9	46.1	100	40	210	947
1 1/2"	36.5	37.5	1.5	47.2	49.9	120	35	175	947
1 3/4"	44.5	45.5	1.5	55.8	61.4	135	25	135	947
2"	49.5	50.5	1.65	60.5	66.7	165	25	135	947
2 1/2"	62.5	63.5	1.6	80.9	89.1	230	16	80	947
3"	73.5	74.5	1.6	90.4	99.6	260	14	60	947
4"	94.5	99.5	1.82	121.1	127.5	300	10	40	947
5"	128	132	2.2	151	161	450	6	24	947
6"	150	154	2.5	179	189	520	6	24	554

Options Available:

Hose Certifications:

Applications:

Brands	Xtra Flex
