Xtra Flex Convoflow EP Hose

Convoluted flexible PTFE hose with vacuum wire and EPDM vulcanized high tensile stainless steel braid, Medium wall.

Construction:

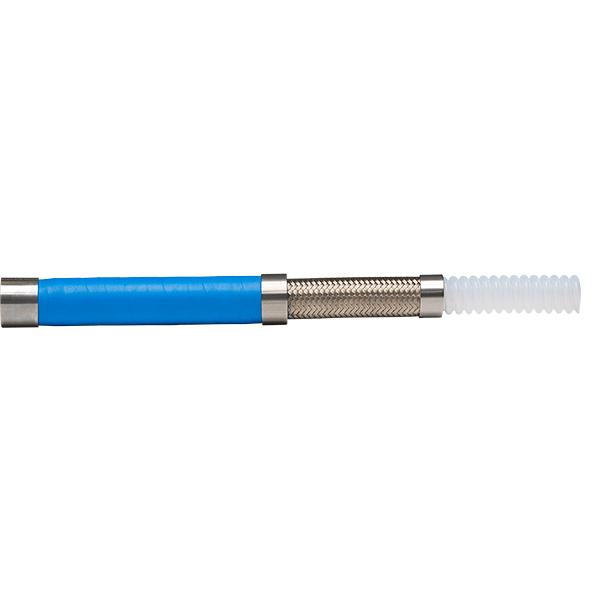

A helically convoluted PTFE inner tube, medium wall with external vacuum wire and outer cover of EPDM vulcanized high tensile stainless steel braid, which ensures high flexibility and easy cleanability.
Convoflow should be specified for steam applications and when high vacuum applications are required.
Generally excellent mechanical strength.
EPDM vulcanized stainless steel braid ensures high flexibility and easy cleanability.

Temperature Range: -70 deg.C to +150 deg. C

Fittings: With PTFE tail, Hydraulic tail and Industrial fittings with PTFE lining

Category: Hoses Tag: Xtra Flex

Size	Hose ID (D1)		Thickness	OD of Braid (D3)		Bend Radius	Working Pressure	Burst Pressure	Vacuum
Inch	Min.	Max.	D2	Min.	Max.	R (mm)	Bar 20 deg. C.
1/2"	11.6	13.6	0.82	19.9	26.9	25	60	300	947
5/8"	15.1	16.4	0.8	23.2	30.5	35	55	270	947
3/4"	19.5	20.5	1	35.6	42.6	55	60	290	947
1"	24.5	25.5	1.1	41.2	48.2	85	40	210	947
1 1/4"	31.5	32.5	1.15	48.9	55.9	100	40	210	947
1 1/2"	36.5	37.5	1.45	54.2	61.2	120	35	175	947
1 3/4"	44.5	45.5	1.45	62.8	69.8	135	25	135	947
2"	49.5	50.5	1.5	67.5	74.5	165	25	135	947

Options Available:

Hose Certifications:

Applications:

Brands	Xtra Flex
